THE SOMMERFELD OGEE CABINETMAKING SET |
|
|
CMT’s popular Sommerfeld Cabinet Making Set is now available
with the ogee raised panel profile. Make raised panels with a
table mounted router that rival those made with expensive
machinery. The new Sommerfeld Cabinetmaking Set features six
router bits designed expressly for making arched raised panel
doors and professional drawer fronts. The set includes the
following: OGEE RAIL AND STILE MATCHED PAIR - Two separate
cutters eliminate the frustration and time-consuming setup of
reversible cutters. The stile cutter has a shear angle to
produce superior cuts. RAISED PANEL BIT WITH BACK-CUTTER - The
3-1/2” diameter bit has a back-cutter which allows milling of
both the front and back of the panel in the same cut. An
additional 1-1/4” diameter bearing promotes safety by allowing
you to take two shallow passes. SUPER-DUTY FLUSH TRIM BIT - The
3/4” cutting diameter gives a superior cut with minimal
chipping, even on end grain. OGEE DOOR EDGE BIT - A subtle cove
followed by a small roundover adds an elegant touch to the door
edge. DRAWER FRONT BIT - This unique bit makes a mini-raised
panel cut on the outside edges of the drawer fronts. A companion
video demonstrating each bit and the use of templates is
included at no extra charge. |
 |
|
|
|

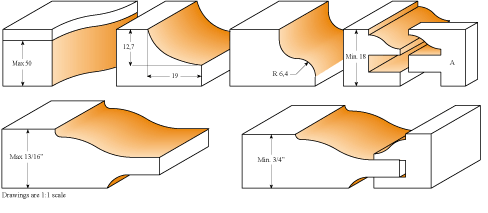

Set No. |
Item No. |
Description |
|
800.520.11 |
806.690.11 |
2 flute super-duty flush trim bit, 3/4 diam. 1/2 shank 1"
cut length |
|
800.520.11 |
837.955.11 |
2 flute "Sommerfeld" drawer front bit, 1/2" shank |
|
800.520.11 |
859.564.11 |
2 flute ogee bit , 1/2" shank, 1/4" radius |
|
800.520.11 |
890.524.11 |
Sommerfeld Ogee Raised Panel Bit with back cutter |
|
800.520.11 |
891.501.11 |
2-pc stile and rail set, ogee profile -(A), 1/2" shank |
|
|
|
|
|
