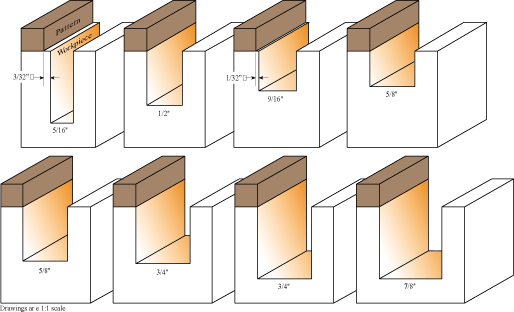

Many complicated template jobs that are usually done with a
band-saw or a scrollsaw can be just as easily and efficiently
carried out with a CMT top bearing Pattern Bit. To avoid
unnecessary damage to the template or the bit, make sure to set
the cutter lower than the template. |
 |
|
|
|
|
|
|
Item No. |
Shank |
Bearing
Dia. |
Cutting
Dia. (in.) |
Cutting
Dia. (mm) |
Cutting
Length |
Overall
Length |
|
811.081.11B |
1/4 |
1/2 |
5/16” |
8 |
1” |
2.8125 |
|
811.127.11B |
1/4 |
1/2 |
1/2” |
12.70 |
3/4” |
2.25 |
|
811.142.11B |
1/4 |
5/8 |
9/16 |
14.2 |
9/16 |
0 |
|
811.159.11B |
1/4 |
5/8 |
5/8” |
15.88 |
1/2” |
2.2813 |
|
811.191.11B |
1/4 |
3/4 |
3/4” |
19.05 |
3/4” |
2.25 |
|
811.222.11B |
1/4 |
7/8 |
7/8” |
22.23 |
1” |
2.625 |
|
811.690.11B |
1/2 |
3/4 |
3/4” |
19.05 |
1” |
2.5 |
|
Spare Parts: |
|
541.001.00 |
Stop Collar for Top Bearing - 1/4" shanks |
|
541.002.00 |
Stop Collar for Top Bearing - 1/2" shanks |
|
791.004.00 |
Bearing 3/4 |
|
791.009.00 |
Bearing 5/8 |
|
791.010.00 |
Bearing 1/2 |
|
791.011.00 |
Bearing 3/4 |
|
791.021.00 |
Bearing 7/8 |
|
799.001.00 |
Bushing for Bearing |
|
991.056.00 |
Hex Key 1.5mm |
|
|
|
