The beautifully crafted dovetail joint is a classic that appeals
to both professionals and novices alike. Admired for its
attractiveness in exposed joint projects, the dovetail is
remarkably strong and functional. CMT Dovetail bits are
available in 26 different sizes including the new 8°-7/16”

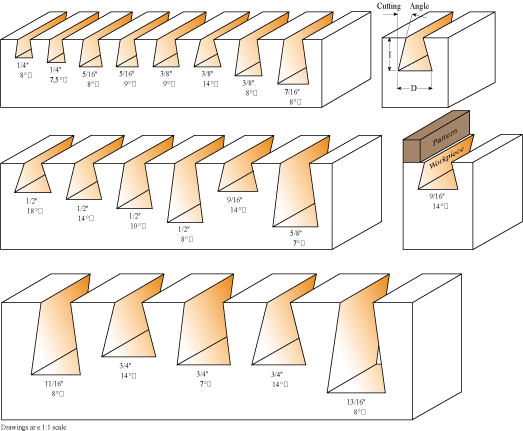

diameter so you can stretch your creativity to its furthest. See
the illustrations on the next page for dovetail joinery
possibilities. CMT Dovetail bits are designed to fit all popular
jigs including Leigh, Keller, JoinTECH and Omnijig systems. You
are sure to find the bit you are looking for in our vast
selection of cutting sizes and angles. Check the overall length
of the bit before placing an order to be sure you get the size
you need - CMT makes bits specifically to fit on jigs and
routers that require a longer shank length. Note: Pre-cut your
dovetails with a straight bit to reduce bit breakage. Use a
diameter slightly less than the small diameter at the neck of
the dovetail bit. This will also improve chip removal and
safety. Search under dovetail above for our dovetail sets |
 |
|
|
|
|
Item No. |
Shank |
Cutting
Dia. (in.) |
Cutting
Dia. (mm) |
Cutting
Length |
Overall
Length |
Cutting
Angle |
Application |
|
818.064.11 |
1/4 |
1/4” |
6.35 |
5/16” |
2.5 |
7.5 |
Incra |
|
818.065.11 |
1/4 |
1/4” |
6.35 |
1/4” |
2 |
8 |
Leigh |
|
818.080.11 |
1/4 |
5/16” |
7.94 |
3/8” |
2.0625 |
9 |
Incra |
|
818.081.11 |
1/4 |
5/16” |
7.94 |
3/8” |
2.125 |
8 |
Leigh |
|
818.096.11 |
1/4 |
3/8” |
9.53 |
3/8” |
2.0625 |
9 |
Incra |
|
818.097.11 |
1/4 |
3/8” |
9.53 |
1/2” |
2.375 |
8 |
Leigh |
|
818.098.11 |
1/4 |
3/8” |
9.53 |
3/8” |
2.375 |
14 |
N/A |
|
818.111.11 |
1/4 |
7/16” |
11.11 |
5/8” |
2.375 |
8 |
Leigh |
|
818.128.11 |
1/4 |
1/2” |
12.70 |
1/2” |
2.0625 |
14 |
Incra |
|
818.129.11 |
1/4 |
1/2” |
12.70 |
13/16” |
2.75 |
8 |
Leigh |
|
818.130.11 |
1/4 |
1/2” |
12.70 |
1/2” |
2.4375 |
14 |
Leigh |
|
818.132.11 |
1/4 |
1/2” |
12.70 |
0.4063 |
2.375 |
18 |
Leigh |
|
818.133.11 |
1/4 |
1/2” |
12.70 |
5/8” |
2.375 |
10 |
Leigh |
|
818.142.11 |
1/4 |
9/16” |
14.29 |
3/8” |
2 |
14 |
N/A |
|
818.142.11B |
1/4 |
9/16” |
14.29 |
3/8” |
2 |
none |
Keller |
|
818.158.11 |
1/4 |
5/8” |
15.88 |
7/8” |
2.375 |
7 |
Incra |
|
818.190.11 |
1/4 |
3/4” |
19.05 |
7/8” |
2.375 |
7 |
Incra |
|
818.191.11 |
1/4 |
3/4” |
19.05 |
7/8” |
2.375 |
14 |
N/A |
|
818.564.11 |
1/2 |
1/4” |
6.35 |
5/16” |
2.5 |
7.5 |
Incra |
|
818.580.11 |
1/2 |
5/16” |
7.94 |
3/8” |
2.5 |
9 |
Incra |
|
818.596.11 |
1/2 |
3/8” |
9.53 |
3/8” |
2.5 |
9 |
Incra |
|
818.628.11 |
1/2 |
1/2” |
12.70 |
1/2” |
2.0625 |
14 |
Incra |
|
818.658.11 |
1/2 |
5/8” |
15.88 |
7/8” |
2.625 |
7 |
Incra |
|
818.674.11 |
1/2 |
11/16” |
17.46 |
1” |
3.0625 |
8 |
Leigh |
|
818.690.11 |
1/2 |
3/4” |
19.05 |
7/8” |
2.625 |
7 |
Incra |
|
818.691.11 |
1/2 |
3/4” |
19.05 |
3/4” |
3.0625 |
14 |
N/A |
|
818.706.11 |
1/2 |
13/16” |
20.64 |
1-1/4” |
3.3125 |
8 |
Leigh |
|
Spare Parts: |
|
541.001.00 |
Stop Collar for Top Bearing - 1/4" shanks |
|
791.010.00 |
Bearing 1/2 |
|
991.056.00 |
Hex Key 1.5mm |
|
|
|
