RETURN TO INDEX CMT ROUTER BITS SALE 30% OFF ALL IN STOCK BITS THE SHOPPING CART DOES NOT WORK ON THIS PAGE PLEASE EMAIL

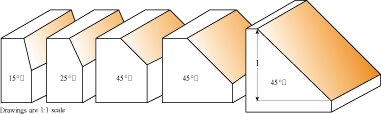

From a gently beveled edge to a decorative chamfers in a variety of materials - CMT offers smooth results. The long cutting length allows maximum versatility in bevel dimensions. Search by item number above to see our chamfer bit set 836.501.11

Item No. Shank Cutting
Dia. (in.)		 Cutting
Dia. (mm)		 Cutting
Length		 Cutting
Angle
836.130.11 1/4 3/4” 19.05 1/2” 15
836.190.11 1/4 7/8” 22.23 1/2” 25
836.280.11 1/4 1-1/4” 31.75 0.4531 45
836.420.11 1/4 1-3/4” 44.45 23/32 45
836.920.11 1/2 1-3/4” 44.45 23/32 45
836.950.11 1/2 2-9/16” 65.09 1-1/8” 45
Spare Parts:
791.003.00 Bearing 1/2
990.057.00 Screw for Bearing 1/8W X 1/4"
991.057.00 Hex Key 3/32
836.190.11

 		 CHAMFER BIT 25D
836.420.11

 		 CHAMFER BIT 45D
836.920.11

 		 CHAMFER BIT 45D 1/2S
836.950.11

 		 CHAMFER BIT 45 1 1/8 1/2S
