RETURN TO INDEX CMT ROUTER BITS SALE 30% OFF ALL IN STOCK BITS THE SHOPPING CART DOES NOT WORK ON THIS PAGE PLEASE EMAIL
Radial Relief   Carbide Tipped

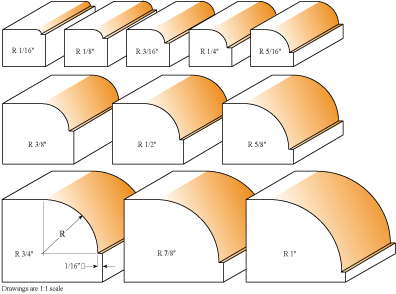

The smaller bearing on the CMT Beading bits makes a delicate inset at the base of the cut, giving you the advantage of an extra decorative option. Simply change the bearing on your Roundover bit to create a bead profile. Important: always assemble the black bearing heat shield with the raised side up when changing the bearing. Improper assembly will cause the screw to come loose and the bearing to fall off when working. All CMT Roundover Bits have a 1/2” bearing diameter with the exception of the 1-1/8” and the 1-1/4” bits which have a 3/4” bearing diameter. You have 13 different radii to choose from, the majority with 2 shank diameter options. All bits are made of Fatigue Proofฎ steel and have carbide tipped cutting edges.
Item No. Shank Bearing
Dia.
Overall
Dia.
Cutting
Length
839.160.11 1/4 3/8 5/8 1/2”
839.190.11 1/4 3/8 3/4 1/2”
839.222.11 1/4 3/8 7/8 1/2”
839.254.11 1/4 3/8 1 1/2”
839.285.11 1/4 3/8 1-1/8 1/2”
839.317.11 1/4 3/8 1-1/4 9/16”
839.380.11 1/4 3/8 1-1/2 3/4”
839.445.11 1/4 3/8 1-3/4 7/8”
839.754.11 1/2 3/8 1 1/2”
839.817.11 1/2 3/8 1-1/4 9/16”
839.880.11 1/2 3/8 1-1/2 3/4”
839.945.11 1/2 3/8 1-3/4 7/8”
839.990.11 1/2 3/8 2
839.991.11 1/2 3/8 2-1/4 1-1/8”
839.992.11 1/2 3/8 2-1/2 1-5/16”
Spare Parts:
791.002.00 Bearing 3/8
990.057.00 Screw for Bearing 1/8W X 1/4"
990.422.00 Shield for Bearing - I.D. 5mm x O.D. 9mm
991.057.00 Hex Key 3/32



839.160.11


BEADING BIT 1/16
839.190.11


BEADING BIT 1/8
839.222.11


BEADING BIT 3/16
839.254.11


BEADING BIT 1/4
839.285.11


BEADING BIT 5/16
839.317.11


BEADING BIT 3/8
839.380.11


BEADING BIT 1/2
839.990.11


BEADING BIT 3/4 1/2S
