Both the CMT Lock Miter Bit and the new Baby Lock Miter are the
perfect tools for any and all your joint projects. Use the Lock
Miter for making jewelry boxes, frames and right angle or
parallel joints in stock from 5/8” to 1-1/8”. For humidors and
small jewelry boxes, we made the Baby Lock Miter to make joints

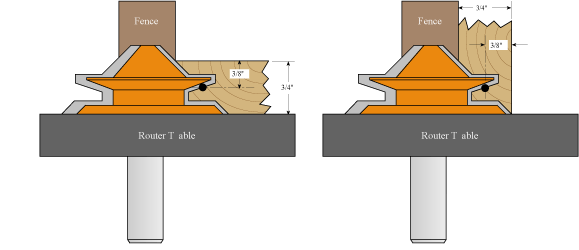

in thinner stock - from 3/8” to 3/4”. To produce perfectly
fitting miter joints, mill the piece with the inside face flat
on the table centered to the bit as shown in step 1 below. Mill
the other workpiece with the inside face vertical to the bit and
fence, as shown in step 2 below. For sturdy parallel joints
follow step 1. Lay the other workpiece inside face up and mill. |
 |
|
|
|
|
|
|
Item No. |
Shank |
Cutting
Dia. (in.) |
Cutting
Dia. (mm) |
Cutting
Length |
Cutting
Angle |
|
855.503.11 |
1/2 |
2-3/4” |
69.85 |
1-1/4” |
45 |
|
855.504.11 |
1/2 |
2” |
50.80 |
7/8” |
45 |
|
|
