Another innovative CMT product designed by Marc Sommerfeld. This
unique stile and rail set allows you to easily produce glass
panel doors utilizing a rubber panel retainer to secure the
glass in an 1/8´´ slot that is cut into the door frames. This
set works the same as our other stile and rail sets but leaves
you with a square rabbet on the inside of your door for
installing the glass panel. The bits are designed to machine all

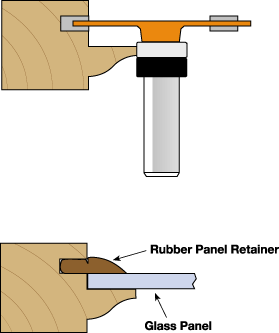

pieces face down. After machining the cope and pattern cuts use
the 1/8” slot cutter to cut the groove for the rubber panel
retainer. The edge of the pattern cut will ride on the guide
bearing on the slot cutter bit (see drawing). When you cut the
groove in the rails you can cut the slot the full length of the
stock. When you cut the groove in the stiles you need to set up
reference points to stop and start the cuts so they are hidden
from view on the top and bottom of the doors. 1/2” Shanks. |
 |
|
|
|
|
|
|
|
