Radial Relief   Carbide Tipped

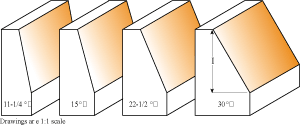

CMT Chamfer bits make polygon work easy. Cut clean, accurate bevels and chamfers to make perfectly aligned multi-sided containers, boxes and other decorative projects. See illustration below for examples. Can be used to work larger scale projects such as beams and columns with excellent results. Search by item number above for our Chamfer Bit Set 836.501.11
Item No. Shank Cutting
Dia. (in.)
Cutting
Dia. (mm)
Cutting
Length
Cutting
Angle
857.501.11 1/2 1-1/2 38.10 7/8 30
857.502.11 1/2 1-1/4 31.75 7/8 22-1/2
857.503.11 1/2 1 25.40 7/8 15
857.504.11 1/2 7/8 22.23 7/8 11-1/4
Spare Parts:
791.003.00 Bearing 1/2
990.057.00 Screw for Bearing 1/8W X 1/4"
991.057.00 Hex Key 3/32
857.501.11


30 6 SIDES BIT
857.502.11


CHAMFER BIT 22 1/2 8 SIDES
857.503.11


CHAMFER BIT 15 12 SIDES
857.504.11


CHAMFER BIT 11 1/4 16 SIDES
